Server - multizone demat (advanced level)

EQUIPMENT

Update the demat version on all equipment to at least 3.3.0.0 (Entry, Exit, Pay Stations).

Modify the file dematSYNCHRO.ini:

• SEND_OPTION=0
• ACCEPT_UNKNOWN=1

Restart the equipment.

SERVER

Update the central demat version to at least 3.4.0.0.

In IHM_Demat:

• Place all equipment into the same group.

• Save the files init_param.txt and DEMAT_sqlite.db3 from the directory E:\Demat\MPKDematSynchro_VOL\DB3.

• Verify that all concerned equipment is listed in the file init_param.txt.

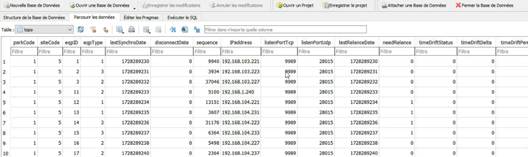

 Use the software located in E:\Applications\SubscribersImport\Tools\SQLiteDatabaseBrowserPortable to open the

DEMAT_sqlite.db3 database and check that all equipment is listed in the 'topo' table.

• Create one Demat group per parking site.

• Create a group for VOL.

• Assign the relevant equipment to each group, and place the VOL in its own group.

Stop the central demat service (XYNT_Demat).

Modify the file dematSYNCHRO.ini (E:\Demat\MPKDematSynchro_VOL\DB3):

• SEND_OPTION=1
• ACCEPT_UNKNOWN=0

Copy the files init_param.txt and DEMAT_sqlite.db3 that include all the equipment, and keep a backup just in case.

Restart the central demat service (XYNT_Demat).
