Original Position

The original position of the camera on the Totem is as follows:

Lens Mounting

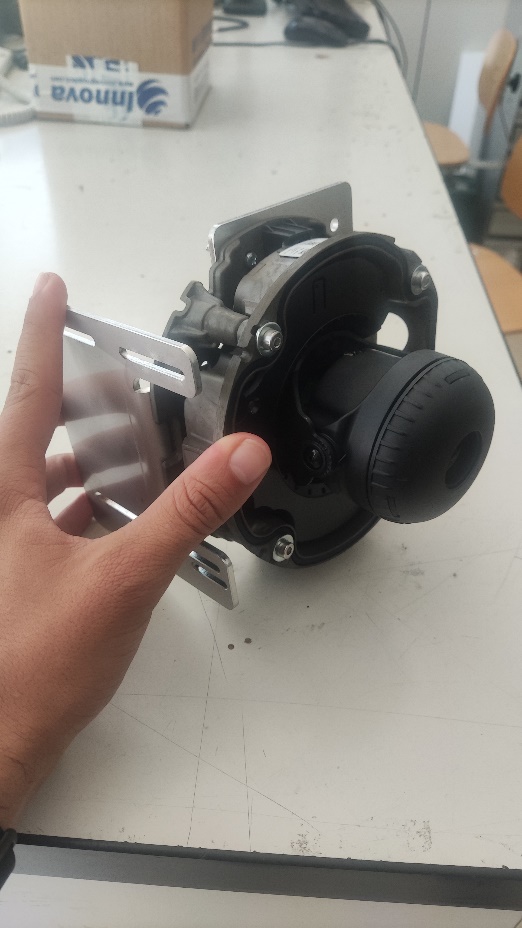

The lens is attached to the camera structure by a 'U' piece as shown in the image below:

This piece rotates on itself so you can adjust the angle of the camera to ensure the horizon is straight.

It is very important to rotate it delicately, holding both sides of the 'U'.

Horizontal Alignment

At the base where the 'U' is attached, there is a line to check if the target is horizontal.

Sensor Rotation

If, after manually adjusting the angle, the image is still tilted, you must manually rotate the sensor.

The marked part below is the sensor—it can also be rotated.
