POF screen calibration

Created by Denis Brazzolotto, Modified on Mon, 7 Jul at 3:36 PM by Denis Brazzolotto

eGalax-19 : screen 18,5’’ CA555
eGalax-21 : screen 21,5’’ CB555

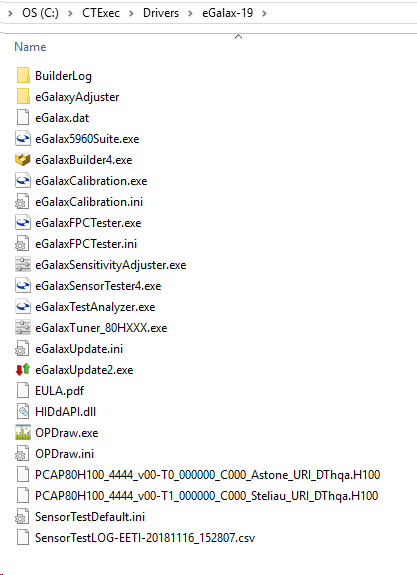

both folders are located in C:\CTExec\Drivers

Firmware update CA555 :

C:\CTExec\Drivers\eGalax19

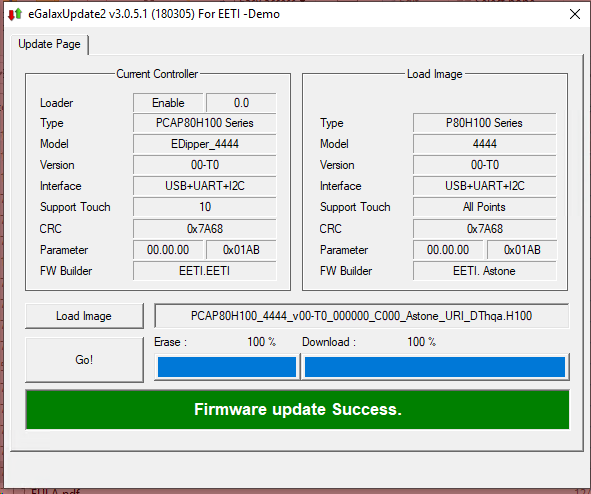

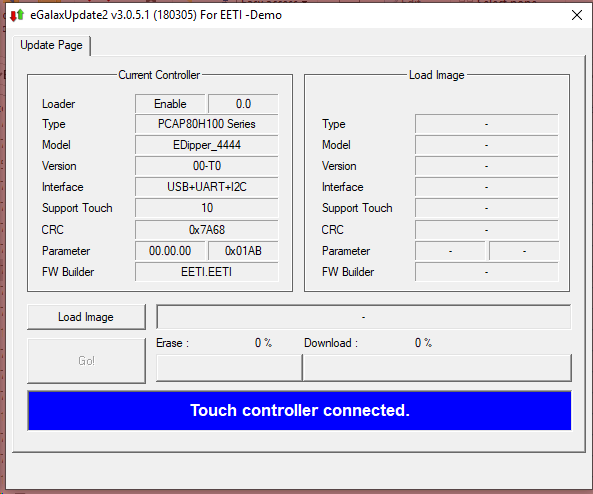

Launch eGalaxUpdate2.exe

Select load Image
From Folder : C:\CTExec\Drivers\eGalax-19
Select the file : PCAP80H100_4444_v00-T1_000000_C000_Steliau_URI_DThqa.H100
Select go

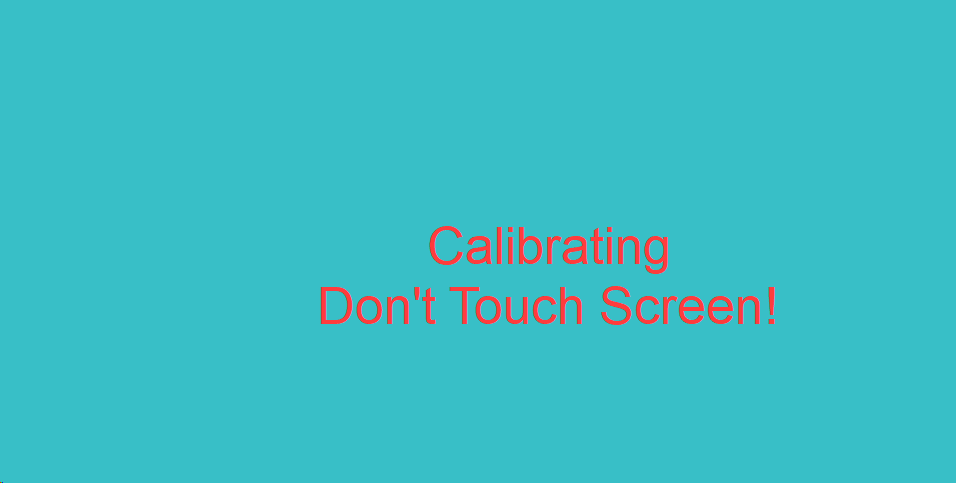

Automatic adjustment ( has to done on site after final screen positioning ). This adjustment needs to run with the door closed ( through VNC connection )

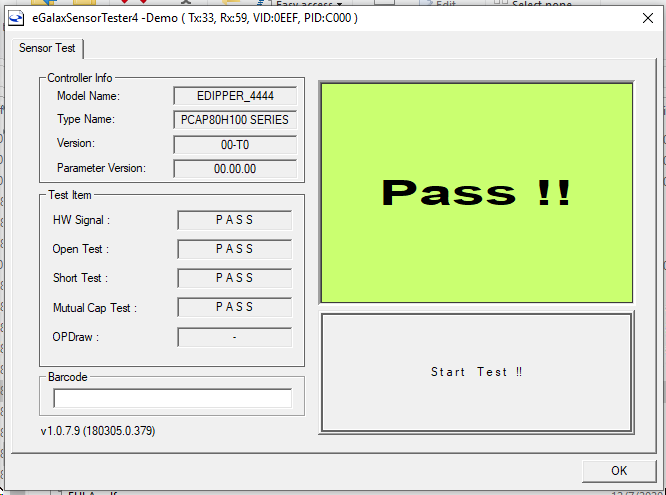

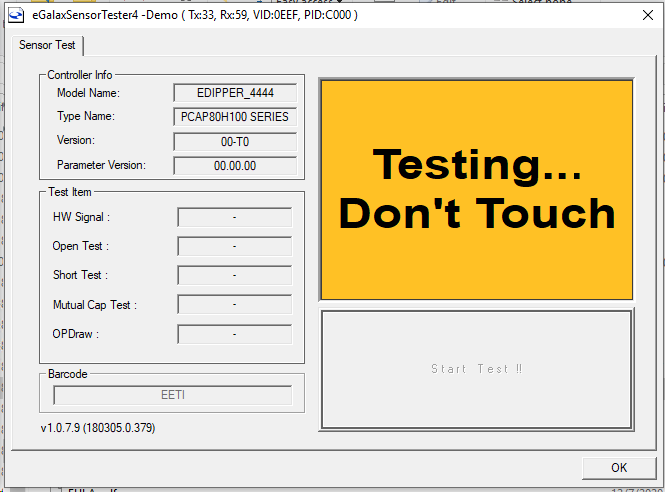

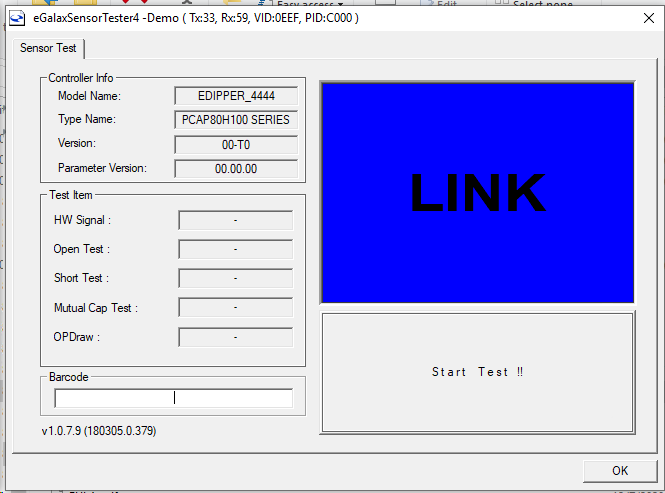

Launch C:\CTExec\Drivers\eGalax-19\ eGalaxSensorTester4.exe

The procedure is the same for the touch screen CB555 :
C:\CTExec\Drivers\eGalax-21
Launch C:\CTExec\Drivers\eGalax-21\ Launch eGalaxUpdate2.exe
Firmware : PCAP80H60_8060_v00_1MM_D_00_C002_Astone_URI_DThqa
Launch C:\CTExec\Drivers\eGalax-19\ eGalaxSensorTester4.exe
